10" Two-Way Multipurpose
Self-Powered Sound

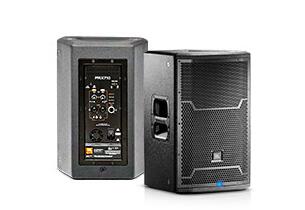

ReinfoPRX710 is a compact and ultra-lightweight speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size. rcement System
Features : Specifications :
133 dB peak SPL
10" low-frequency driver for low-distortion
and higher SPL
1.5" diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Efficient Class-D amplifier technology
Normal and Boost user selectable EQ presets
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Line level and direct microphone input capability
Professional XLR-1/4" combination inputs, RCA inputs,
and XLR loop-through
Integrated 36 mm pole mount socket
Integrated handle with injection molded backing cup for easy transport
Integrated M10 suspension points for easy setup
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

Power Rating  :   1500 W

Frequency Range (-10 dB)  :   Normal: 50 Hz – 19.6kHz
Boost: 42.9 Hz – 20kHz

Frequency Response (±3 dB)  :   Normal: 63.5 Hz – 18.5kHz
Boost: 53 Hz – 18.6kHz

Coverage Pattern  :   100° x 60° nominal

Directivity Index (DI)  :   9 dB

Directivity Factor (Q)  :   8

Crossover Frequency  :   1.9 kHz

Maximum SPL  :   133 dB

Signal Indicators  :   Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.

Dynamic Control (Input)  :   dbx Type IV™ limiter circuit

Input Impedance  :   20K Ohms (balanced), 10K Ohms (unbalanced)

LF Driver  :   1 x JBL M110-4 250mm (10 in) woofer

HF Driver  :   1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver

Enclosure  :   Trapezoidal, 18 mm, plywood

Suspension / Mounting  :   single 36 mm pole socket, 8 x M10 Suspension Points, 1 x M10 pull back point

Transport  :   1 x integrated handle with injection molded backing cup

Finish  :   Obsidian DuraFlex™ finish

Grille  :   Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Input Connectors  :   2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

Output Connectors  :   1 male XLR balanced output

Dimensions (H x W x D)  :   498.7 mm x 335.6 mm x 322.3 mm
(19.63 in x 13.21 in x 12.69 in)

Net Weight  :   16.4 kg (36 lb)
