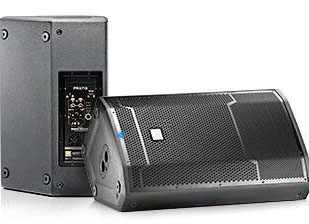

15" Two-Way Full-Range
Main System/Floor Monitor
Power Rating  :   1500 W

Frequency Range (-10 dB)  :   Main: 42.9 Hz - 19.5 kHz
Monitor: 43.6 Hz - 19.3 kHz

Frequency Response (±3 dB)  :   Main: 58.1 Hz - 17.2 kHz
Monitor: 60.7 Hz - 16.7 kHz

Coverage Pattern  :   90° x 50° nominal

Directivity Index (DI)  :   10.2 dB

Directivity Factor (Q)  :   10.4

Crossover Frequency  :   1.7 kHz

Maximum SPL  :   Normal: 136 dB
Boost: 136 dB

Signal indicators  :   Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.

Dynamic Control (Input)  :   dbx Type IV™ limiter circuit

Input Impedance  :   20K Ohms (balanced), 10K Ohms (unbalanced)

LF Driver  :   1 x JBL 275G (15 in) woofer

HF Driver  :   1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Enclosure  :   Asymmetrical, 18 mm, plywood

Suspension / Mounting  :   Dual 36 mm pole socket, 12 x M10 Suspension Points

Transport  :   1 x injection molded handles with backing cup

Finish  :   Obsidian DuraFlex™ finish

Grille  :   Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Input Connectors  :   2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

Output Connectors  :   1 male XLR balanced output

Dimensions (H x W x D)  :   714.43 mm x 445.13 mm x 358.71 mm
(28.13 in x 17.52 in x 14.12 in)

Net Weight  :   21.6 kg (47.5 lb.)
