12" Two-Way Full-Range
Main System/Floor Monitor

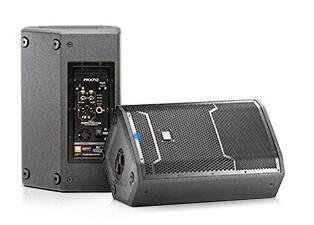

PRX712 is a compact and versatile speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.
Power Rating
  :
1500 W


Frequency Range (-10 dB)  :   Main: 44.8 Hz – 19.6 kHz
Monitor: 44.8 Hz – 19.5 kHz


Frequency Response (±3 dB)  :   Main: 55.7 Hz – 18.2 kHz
Monitor: 56.5 Hz – 17.7 kHz


Coverage Pattern  :   90° x 50° nominal


Directivity Index (DI)  :   10.2 dB


Directivity Factor (Q)  :   10.4


Crossover Frequency  :   1.8 kHz


Maximum SPL  :   Normal: 135 dB
Boost: 135 dB


Signal Indicators  :   Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.


Dynamic Control (Input)  :   dbx Type IV™ limiter circuit


Input Impedance  :   20K Ohms (balanced), 10K Ohms (unbalanced)


LF Driver  :   1 x JBL 272G 305mm (12 in) woofer


HF Driver  :   1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver


Enclosure  :   Asymmetrical, 18 mm, plywood


Suspension / Mounting  :   Dual 36 mm pole socket, 12 x M10 Suspension Points


Transport  :   1 x injection molded handles with backing cup


Finish  :   Obsidian DuraFlex™ finish


Grille  :   Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.


Input Connectors  :   2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input


Output Connectors  :   1 male XLR balanced output


Dimensions (H x W x D)  :   612.394 mm x 384.556 mm x 341.376 mm
(24.11 in x 15.14 in x 13.44 in)


Net Weight  :   19.4 kg (42.5 lb.)
