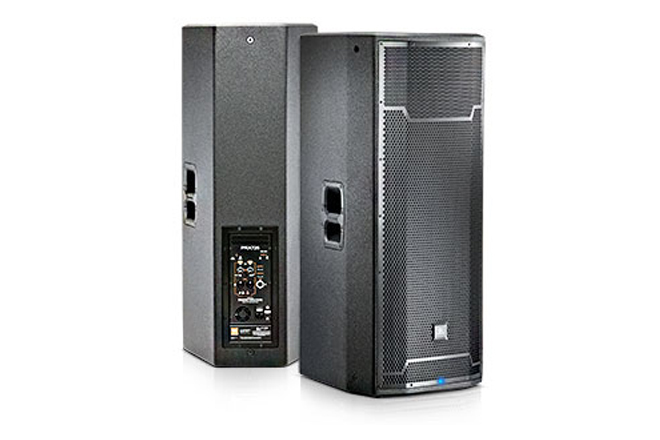

PRX725
Dual 15" Two-Way Full-Range
Main System
The PRX725 is a self-powered, lightweight two-way loudspeaker system capable of delivering a very high level of performance over a bro
Power Rating  :   1500 W

Frequency Range (-10 dB)  :   Normal: 42 Hz – 18.5 kHz
Boost: 40 Hz – 18.5 kHz

Frequency Response (±3 dB)  :   Normal: 49 Hz – 17 kHz
Boost: 46 Hz – 17 kHz

Coverage Pattern  :   90° x 50° nominal

Directivity Index (DI)  :   10.4 dB

Directivity Factor (Q)  :   11

Crossover Frequency  :   2.4 kHz

Maximum SPL  :   Normal: 139 dB
Boost: 139 dB

Signal Indicators  :   Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.

Dynamic Control (Input)  :   dbx Type IV™ limiter circuit

Input Impedance  :   20K Ohms (balanced), 10K Ohms (unbalanced)

LF Driver  :   2 x JBL 275 (15 in) woofer

HF Driver  :   1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Enclosure  :   Trapezoidal, 18 mm, plywood

Suspension / Mounting  :   8 x M10 Suspension Points, 1 x M10 pull back point

Transport  :   2x integrated handle with injection molded backing cup

Finish  :   Obsidian DuraFlex™ finish

Grille  :   Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Input Connectors  :   2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

Output Connectors  :   1 male XLR balanced output

Dimensions (H x W x D)  :   1070.36 mm x 445.0 mm x 537.97 mm
(42.14 in x 17.52 in x 21.18 in)

Net Weight  :   37.19 kg (82 lb.)
